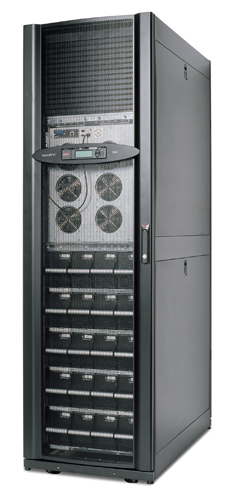

SUVTR40KH5B5S 基本性能
可复位的电路断路器
可从过载事件快速恢复。
可现场更换的电源配电盘
对具有不同插头类型的设备确保其兼容性
多个电缆进入点
提供 UPS 在机房放置的灵活性方便到接线板的电缆安装
锁定室
防止未经授权接触 UPS
Smart-UPS VT 性能与优势
可用性
双电源输入
将 UPS 连接到两个独立的电源中，增加了可靠性。
可扩展的运行时间
需要时允许快速增加更多的运行时间
热插拔电池
在更换电池的整个过程中，确保干净、不间断电源以保护设备
兼容发电机
使用发电机电源时，确保干净、不间断电源以保护设备
自动内部旁路
在UPS电源出现过载或故障的情况下向所连接的负载提供公用电源。
并联电池模块
通过冗余电池提供更高的可用性
可服务性
不用工具更换电池
可迅速便捷地更换电池
自动自检
定期自检电池，确保及早检测出需要更换的电池。
模块已安装可以发货
能够进行安装前 UPS 的分段运输和测试以及快速安装
模块化设计
通过自我诊断，现场可替换模块而提供快速可用性，减少维护需求
易管理性
网络管理
通过网络实现对于UPS的远程电源管理。
兼容英飞管理器
以便通过 APC 的英飞管理器软件进行集中管理。
LSD 显示器
字母数字显示器，显示系统参数和告警。
有声报警
提供改变市电和UPS电源条件的通知
可编程频率范围
保证与不同输入频率的兼容性
LED 状态指示灯
借助于视频指示器可以快速了解设备和电源状态。
SmartSlot 插槽
利用管理卡定制 UPS 性能
总体拥有成本
输入功率因数校正
通过使用小型发电机和电线连接,使安装费用最少
温度补偿电池充电
根据实际的电池温度调整充电电压延长电池寿命
手动维护旁路
不需要安装外部机械旁路，可降低安装成本。
智能电池管理
通过智能、精确的充电技术获得最佳的电池性能、寿命和可靠性。
系统保护
频率和电压调整
可以在不使用电池的情况下修正较差的频率和电压条件，从而提供更高的可用性。
经安全机构的认证
产品经过测试和认证，确保可在规定的环境内与所连接的服务提供商设备共同安全工作。
冷启动能力
当市电停止时提供临时的电池供电
输出
输出功率容量
32 kW / 40 kVA
最大可配置功率
32 kW / 40 kVA
额定输出电压
400V 3PH
输出电压可调范围
可配置用于 380、400 或 415 V 3 相额定输出电压
满负载效率
96.0%
输出电压失真
满负荷时低于 5%
输出频率(与主频率同步)
47 - 53 Hz（50 Hz 标称值）
其它输出电压
380, 415
波峰因数
无限的
拓朴
双转换联机
波形类型
正弦波
输出连接
| (1) Hard Wire 5-wire (3PH + N + G) | |
| (12) IEC 320 C19 |
|
过载工作
60 seconds @ 125% and 30 seconds @ 150%
旁路
内置维修旁路, 内置静态旁路
输入
额定输入电压
400V 3PH
输入频率
40 - 70 Hz
输入端子类型
| Hard Wire 5-wire (3PH + N + G) |
工作电压范围
304 - 477V
其他输入电压
380, 415
最大输入电流
55A
输入断路器容量
80.0 A
电池与运行时间
电池型号
VRLA
预装电池
5
典型充电时间
3 小时
可更换电池包
RBC™ 数量
5
运行时图表
| Curve | Part Number(s) |
| A | SUVTR40KH5B5S |
| B |
SUVTR40KH5B5S + (1)SUVTXR6B6S |
| C |
SUVTR40KH5B5S + (2)SUVTXR6B6S |
| D |
SUVTR40KH5B5S + (3)SUVTXR6B6S |
| E |
SUVTR40KH5B5S + (4)SUVTXR6B6S |
| E |
| 运行期（最小值）: 105.7 |
| 负载 (kW): 31.36 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 966.2 |
| 负载 (kW): 4.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 910.8 |
| 负载 (kW): 4.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 861.0 |
| 负载 (kW): 5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 816.0 |
| 负载 (kW): 5.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 775.2 |
| 负载 (kW): 5.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 738.0 |
| 负载 (kW): 5.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 703.9 |
| 负载 (kW): 6 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 672.7 |
| 负载 (kW): 6.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 643.9 |
| 负载 (kW): 6.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 617.2 |
| 负载 (kW): 6.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 592.6 |
| 负载 (kW): 7 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 569.7 |
| 负载 (kW): 7.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 548.4 |
| 负载 (kW): 7.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 528.4 |
| 负载 (kW): 7.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 509.8 |
| 负载 (kW): 8 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 492.4 |
| 负载 (kW): 8.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 476.0 |
| 负载 (kW): 8.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 460.6 |
| 负载 (kW): 8.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 446.1 |
| 负载 (kW): 9 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 432.4 |
| 负载 (kW): 9.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 419.4 |
| 负载 (kW): 9.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 407.2 |
| 负载 (kW): 9.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 395.6 |
| 负载 (kW): 10 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 384.5 |
| 负载 (kW): 10.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 374.1 |
| 负载 (kW): 10.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 364.1 |
| 负载 (kW): 10.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 354.6 |
| 负载 (kW): 11 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 345.6 |
| 负载 (kW): 11.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 336.9 |
| 负载 (kW): 11.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 328.7 |
| 负载 (kW): 11.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 320.8 |
| 负载 (kW): 12 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 313.3 |
| 负载 (kW): 12.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 306.0 |
| 负载 (kW): 12.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 299.1 |
| 负载 (kW): 12.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 292.5 |
| 负载 (kW): 13 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 286.1 |
| 负载 (kW): 13.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 279.9 |
| 负载 (kW): 13.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 274.0 |
| 负载 (kW): 13.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 268.4 |
| 负载 (kW): 14 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 262.9 |
| 负载 (kW): 14.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 257.6 |
| 负载 (kW): 14.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 252.6 |
| 负载 (kW): 14.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 247.7 |
| 负载 (kW): 15 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 242.9 |
| 负载 (kW): 15.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 238.4 |
| 负载 (kW): 15.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 234.0 |
| 负载 (kW): 15.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 229.7 |
| 负载 (kW): 16 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 225.6 |
| 负载 (kW): 16.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 221.6 |
| 负载 (kW): 16.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 217.7 |
| 负载 (kW): 16.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 213.9 |
| 负载 (kW): 17 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 210.3 |
| 负载 (kW): 17.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 206.8 |
| 负载 (kW): 17.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 203.4 |
| 负载 (kW): 17.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 200.0 |
| 负载 (kW): 18 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 196.8 |
| 负载 (kW): 18.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 193.7 |
| 负载 (kW): 18.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 190.7 |
| 负载 (kW): 18.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 187.7 |
| 负载 (kW): 19 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 184.8 |
| 负载 (kW): 19.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 182.0 |
| 负载 (kW): 19.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 179.3 |
| 负载 (kW): 19.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 176.7 |
| 负载 (kW): 20 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 174.1 |
| 负载 (kW): 20.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 171.6 |
| 负载 (kW): 20.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 169.2 |
| 负载 (kW): 20.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 166.8 |
| 负载 (kW): 21 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 164.4 |
| 负载 (kW): 21.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 162.2 |
| 负载 (kW): 21.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 160.0 |
| 负载 (kW): 21.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 157.8 |
| 负载 (kW): 22 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 155.7 |
| 负载 (kW): 22.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 153.6 |
| 负载 (kW): 22.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 151.6 |
| 负载 (kW): 22.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 149.7 |
| 负载 (kW): 23 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 147.8 |
| 负载 (kW): 23.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 145.9 |
| 负载 (kW): 23.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 144.1 |
| 负载 (kW): 23.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 142.3 |
| 负载 (kW): 24 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 140.5 |
| 负载 (kW): 24.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 138.8 |
| 负载 (kW): 24.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 137.2 |
| 负载 (kW): 24.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 135.5 |
| 负载 (kW): 25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 133.9 |
| 负载 (kW): 25.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 132.3 |
| 负载 (kW): 25.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 130.8 |
| 负载 (kW): 25.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 129.3 |
| 负载 (kW): 26 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 127.8 |
| 负载 (kW): 26.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 126.4 |
| 负载 (kW): 26.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 125.0 |
| 负载 (kW): 26.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 123.6 |
| 负载 (kW): 27 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 122.2 |
| 负载 (kW): 27.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 120.9 |
| 负载 (kW): 27.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 119.6 |
| 负载 (kW): 27.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 118.3 |
| 负载 (kW): 28 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 117.0 |
| 负载 (kW): 28.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 115.8 |
| 负载 (kW): 28.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 114.6 |
| 负载 (kW): 28.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 113.4 |
| 负载 (kW): 29 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 112.2 |
| 负载 (kW): 29.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 111.1 |
| 负载 (kW): 29.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 109.9 |
| 负载 (kW): 29.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 108.8 |
| 负载 (kW): 30 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 107.7 |
| 负载 (kW): 30.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 106.7 |
| 负载 (kW): 30.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 105.6 |
| 负载 (kW): 30.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 104.6 |
| 负载 (kW): 31 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 103.6 |
| 负载 (kW): 31.25 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 102.6 |
| 负载 (kW): 31.5 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 101.6 |
| 负载 (kW): 31.75 |
| SUVTR40KH5B5S + (4) SUVTXR6B6S |
| 运行期（最小值）: 100.6 |
| 负载 (kW): 32 |
| D |
| 运行期（最小值）: 79.3 |
| 负载 (kW): 31.36 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 964.6 |
| 负载 (kW): 3.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 895.9 |
| 负载 (kW): 3.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 835.8 |
| 负载 (kW): 4 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 782.7 |
| 负载 (kW): 4.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 735.5 |
| 负载 (kW): 4.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 693.3 |
| 负载 (kW): 4.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 655.3 |
| 负载 (kW): 5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 621.0 |
| 负载 (kW): 5.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 589.9 |
| 负载 (kW): 5.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 561.5 |
| 负载 (kW): 5.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 535.5 |
| 负载 (kW): 6 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 511.7 |
| 负载 (kW): 6.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 489.7 |
| 负载 (kW): 6.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 469.4 |
| 负载 (kW): 6.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 450.6 |
| 负载 (kW): 7 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 433.2 |
| 负载 (kW): 7.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 416.9 |
| 负载 (kW): 7.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 401.7 |
| 负载 (kW): 7.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 387.5 |
| 负载 (kW): 8 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 374.2 |
| 负载 (kW): 8.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 361.7 |
| 负载 (kW): 8.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 350.0 |
| 负载 (kW): 8.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 338.9 |
| 负载 (kW): 9 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 328.5 |
| 负载 (kW): 9.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 318.6 |
| 负载 (kW): 9.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 309.2 |
| 负载 (kW): 9.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 300.4 |
| 负载 (kW): 10 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 292.0 |
| 负载 (kW): 10.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 284.0 |
| 负载 (kW): 10.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 276.4 |
| 负载 (kW): 10.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 269.2 |
| 负载 (kW): 11 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 262.3 |
| 负载 (kW): 11.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 255.7 |
| 负载 (kW): 11.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 249.4 |
| 负载 (kW): 11.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 243.4 |
| 负载 (kW): 12 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 237.6 |
| 负载 (kW): 12.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 232.1 |
| 负载 (kW): 12.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 226.9 |
| 负载 (kW): 12.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 221.8 |
| 负载 (kW): 13 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 216.9 |
| 负载 (kW): 13.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 212.2 |
| 负载 (kW): 13.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 207.8 |
| 负载 (kW): 13.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 203.4 |
| 负载 (kW): 14 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 199.2 |
| 负载 (kW): 14.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 195.2 |
| 负载 (kW): 14.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 191.4 |
| 负载 (kW): 14.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 187.6 |
| 负载 (kW): 15 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 184.0 |
| 负载 (kW): 15.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 180.5 |
| 负载 (kW): 15.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 177.2 |
| 负载 (kW): 15.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 173.9 |
| 负载 (kW): 16 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 170.8 |
| 负载 (kW): 16.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 167.7 |
| 负载 (kW): 16.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 164.8 |
| 负载 (kW): 16.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 161.9 |
| 负载 (kW): 17 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 159.2 |
| 负载 (kW): 17.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 156.5 |
| 负载 (kW): 17.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 153.9 |
| 负载 (kW): 17.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 151.3 |
| 负载 (kW): 18 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 148.9 |
| 负载 (kW): 18.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 146.5 |
| 负载 (kW): 18.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 144.2 |
| 负载 (kW): 18.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 141.9 |
| 负载 (kW): 19 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 139.7 |
| 负载 (kW): 19.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 137.6 |
| 负载 (kW): 19.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 135.5 |
| 负载 (kW): 19.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 133.5 |
| 负载 (kW): 20 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 131.6 |
| 负载 (kW): 20.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 129.6 |
| 负载 (kW): 20.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 127.8 |
| 负载 (kW): 20.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 126.0 |
| 负载 (kW): 21 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 124.2 |
| 负载 (kW): 21.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 122.5 |
| 负载 (kW): 21.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 120.8 |
| 负载 (kW): 21.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 119.1 |
| 负载 (kW): 22 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 117.5 |
| 负载 (kW): 22.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 116.0 |
| 负载 (kW): 22.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 114.4 |
| 负载 (kW): 22.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 112.9 |
| 负载 (kW): 23 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 111.5 |
| 负载 (kW): 23.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 110.0 |
| 负载 (kW): 23.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 108.6 |
| 负载 (kW): 23.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 107.3 |
| 负载 (kW): 24 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 106.0 |
| 负载 (kW): 24.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 104.6 |
| 负载 (kW): 24.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 103.4 |
| 负载 (kW): 24.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 102.1 |
| 负载 (kW): 25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 100.9 |
| 负载 (kW): 25.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 99.7 |
| 负载 (kW): 25.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 98.5 |
| 负载 (kW): 25.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 97.4 |
| 负载 (kW): 26 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 96.3 |
| 负载 (kW): 26.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 95.2 |
| 负载 (kW): 26.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 94.1 |
| 负载 (kW): 26.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 93.0 |
| 负载 (kW): 27 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 92.0 |
| 负载 (kW): 27.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 91.0 |
| 负载 (kW): 27.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 90.0 |
| 负载 (kW): 27.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 89.0 |
| 负载 (kW): 28 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 88.0 |
| 负载 (kW): 28.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 87.1 |
| 负载 (kW): 28.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 86.2 |
| 负载 (kW): 28.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 85.2 |
| 负载 (kW): 29 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 84.4 |
| 负载 (kW): 29.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 83.5 |
| 负载 (kW): 29.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 82.6 |
| 负载 (kW): 29.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 81.8 |
| 负载 (kW): 30 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 81.0 |
| 负载 (kW): 30.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 80.1 |
| 负载 (kW): 30.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 79.3 |
| 负载 (kW): 30.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 78.6 |
| 负载 (kW): 31 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 77.8 |
| 负载 (kW): 31.25 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 77.0 |
| 负载 (kW): 31.5 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 76.3 |
| 负载 (kW): 31.75 |
| SUVTR40KH5B5S + (3) SUVTXR6B6S |
| 运行期（最小值）: 75.5 |
| 负载 (kW): 32 |
| C |
| 运行期（最小值）: 53.9 |
| 负载 (kW): 31.36 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 740.3 |
| 负载 (kW): 3.2 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 728.3 |
| 负载 (kW): 3.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 673.0 |
| 负载 (kW): 3.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 625.0 |
| 负载 (kW): 3.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 583.0 |
| 负载 (kW): 4 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 545.8 |
| 负载 (kW): 4.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 512.8 |
| 负载 (kW): 4.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 483.3 |
| 负载 (kW): 4.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 456.8 |
| 负载 (kW): 5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 432.8 |
| 负载 (kW): 5.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 411.0 |
| 负载 (kW): 5.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 391.2 |
| 负载 (kW): 5.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 373.0 |
| 负载 (kW): 6 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 356.3 |
| 负载 (kW): 6.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 341.0 |
| 负载 (kW): 6.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 326.8 |
| 负载 (kW): 6.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 313.6 |
| 负载 (kW): 7 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 301.4 |
| 负载 (kW): 7.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 290.0 |
| 负载 (kW): 7.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 279.4 |
| 负载 (kW): 7.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 269.5 |
| 负载 (kW): 8 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 260.2 |
| 负载 (kW): 8.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 251.4 |
| 负载 (kW): 8.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 243.2 |
| 负载 (kW): 8.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 235.5 |
| 负载 (kW): 9 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 228.2 |
| 负载 (kW): 9.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 221.3 |
| 负载 (kW): 9.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 214.8 |
| 负载 (kW): 9.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 208.6 |
| 负载 (kW): 10 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 202.7 |
| 负载 (kW): 10.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 197.1 |
| 负载 (kW): 10.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 191.8 |
| 负载 (kW): 10.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 186.7 |
| 负载 (kW): 11 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 181.9 |
| 负载 (kW): 11.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 177.3 |
| 负载 (kW): 11.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 172.9 |
| 负载 (kW): 11.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 168.7 |
| 负载 (kW): 12 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 164.7 |
| 负载 (kW): 12.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 160.8 |
| 负载 (kW): 12.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 157.1 |
| 负载 (kW): 12.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 153.6 |
| 负载 (kW): 13 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 150.2 |
| 负载 (kW): 13.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 146.9 |
| 负载 (kW): 13.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 143.8 |
| 负载 (kW): 13.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 140.7 |
| 负载 (kW): 14 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 137.8 |
| 负载 (kW): 14.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 135.0 |
| 负载 (kW): 14.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 132.3 |
| 负载 (kW): 14.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 129.7 |
| 负载 (kW): 15 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 127.2 |
| 负载 (kW): 15.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 124.7 |
| 负载 (kW): 15.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 122.4 |
| 负载 (kW): 15.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 120.1 |
| 负载 (kW): 16 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 117.9 |
| 负载 (kW): 16.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 115.8 |
| 负载 (kW): 16.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 113.7 |
| 负载 (kW): 16.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 111.7 |
| 负载 (kW): 17 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 109.8 |
| 负载 (kW): 17.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 107.9 |
| 负载 (kW): 17.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 106.1 |
| 负载 (kW): 17.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 104.3 |
| 负载 (kW): 18 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 102.6 |
| 负载 (kW): 18.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 100.9 |
| 负载 (kW): 18.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 99.3 |
| 负载 (kW): 18.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 97.7 |
| 负载 (kW): 19 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 96.2 |
| 负载 (kW): 19.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 94.7 |
| 负载 (kW): 19.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 93.3 |
| 负载 (kW): 19.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 91.9 |
| 负载 (kW): 20 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 90.5 |
| 负载 (kW): 20.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 89.1 |
| 负载 (kW): 20.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 87.8 |
| 负载 (kW): 20.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 86.6 |
| 负载 (kW): 21 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 85.3 |
| 负载 (kW): 21.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 84.1 |
| 负载 (kW): 21.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 82.9 |
| 负载 (kW): 21.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 81.8 |
| 负载 (kW): 22 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 80.7 |
| 负载 (kW): 22.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 79.6 |
| 负载 (kW): 22.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 78.5 |
| 负载 (kW): 22.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 77.5 |
| 负载 (kW): 23 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 76.4 |
| 负载 (kW): 23.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 75.4 |
| 负载 (kW): 23.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 74.5 |
| 负载 (kW): 23.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 73.5 |
| 负载 (kW): 24 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 72.6 |
| 负载 (kW): 24.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 71.7 |
| 负载 (kW): 24.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 70.8 |
| 负载 (kW): 24.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 69.9 |
| 负载 (kW): 25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 69.0 |
| 负载 (kW): 25.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 68.2 |
| 负载 (kW): 25.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 67.4 |
| 负载 (kW): 25.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 66.6 |
| 负载 (kW): 26 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 65.8 |
| 负载 (kW): 26.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 65.0 |
| 负载 (kW): 26.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 64.3 |
| 负载 (kW): 26.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 63.5 |
| 负载 (kW): 27 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 62.8 |
| 负载 (kW): 27.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 62.1 |
| 负载 (kW): 27.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 61.4 |
| 负载 (kW): 27.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 60.7 |
| 负载 (kW): 28 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 60.0 |
| 负载 (kW): 28.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 59.4 |
| 负载 (kW): 28.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 58.7 |
| 负载 (kW): 28.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 58.1 |
| 负载 (kW): 29 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 57.5 |
| 负载 (kW): 29.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 56.9 |
| 负载 (kW): 29.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 56.3 |
| 负载 (kW): 29.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 55.7 |
| 负载 (kW): 30 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 55.1 |
| 负载 (kW): 30.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 54.5 |
| 负载 (kW): 30.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 54.0 |
| 负载 (kW): 30.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 53.4 |
| 负载 (kW): 31 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 52.9 |
| 负载 (kW): 31.25 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 52.3 |
| 负载 (kW): 31.5 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 51.8 |
| 负载 (kW): 31.75 |
| SUVTR40KH5B5S + (2) SUVTXR6B6S |
| 运行期（最小值）: 51.3 |
| 负载 (kW): 32 |
| B |
| 运行期（最小值）: 30.5 |
| 负载 (kW): 31.36 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 445.8 |
| 负载 (kW): 3.2 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 438.5 |
| 负载 (kW): 3.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 405.1 |
| 负载 (kW): 3.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 376.1 |
| 负载 (kW): 3.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 350.6 |
| 负载 (kW): 4 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 328.2 |
| 负载 (kW): 4.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 308.2 |
| 负载 (kW): 4.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 290.4 |
| 负载 (kW): 4.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 274.3 |
| 负载 (kW): 5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 259.8 |
| 负载 (kW): 5.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 246.6 |
| 负载 (kW): 5.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 234.6 |
| 负载 (kW): 5.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 223.6 |
| 负载 (kW): 6 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 213.5 |
| 负载 (kW): 6.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 204.2 |
| 负载 (kW): 6.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 195.7 |
| 负载 (kW): 6.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 187.7 |
| 负载 (kW): 7 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 180.3 |
| 负载 (kW): 7.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 173.4 |
| 负载 (kW): 7.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 167.0 |
| 负载 (kW): 7.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 161.0 |
| 负载 (kW): 8 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 155.4 |
| 负载 (kW): 8.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 150.1 |
| 负载 (kW): 8.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 145.1 |
| 负载 (kW): 8.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 140.5 |
| 负载 (kW): 9 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 136.0 |
| 负载 (kW): 9.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 131.9 |
| 负载 (kW): 9.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 127.9 |
| 负载 (kW): 9.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 124.2 |
| 负载 (kW): 10 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 120.6 |
| 负载 (kW): 10.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 117.2 |
| 负载 (kW): 10.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 114.0 |
| 负载 (kW): 10.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 111.0 |
| 负载 (kW): 11 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 108.0 |
| 负载 (kW): 11.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 105.3 |
| 负载 (kW): 11.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 102.6 |
| 负载 (kW): 11.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 100.0 |
| 负载 (kW): 12 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 97.6 |
| 负载 (kW): 12.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 95.3 |
| 负载 (kW): 12.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 93.0 |
| 负载 (kW): 12.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 90.9 |
| 负载 (kW): 13 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 88.8 |
| 负载 (kW): 13.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 86.9 |
| 负载 (kW): 13.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 85.0 |
| 负载 (kW): 13.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 83.1 |
| 负载 (kW): 14 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 81.4 |
| 负载 (kW): 14.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 79.7 |
| 负载 (kW): 14.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 78.0 |
| 负载 (kW): 14.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 76.5 |
| 负载 (kW): 15 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 74.9 |
| 负载 (kW): 15.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 73.5 |
| 负载 (kW): 15.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 72.0 |
| 负载 (kW): 15.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 70.7 |
| 负载 (kW): 16 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 69.3 |
| 负载 (kW): 16.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 68.0 |
| 负载 (kW): 16.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 66.8 |
| 负载 (kW): 16.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 65.6 |
| 负载 (kW): 17 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 64.4 |
| 负载 (kW): 17.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 63.3 |
| 负载 (kW): 17.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 62.2 |
| 负载 (kW): 17.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 61.1 |
| 负载 (kW): 18 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 60.1 |
| 负载 (kW): 18.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 59.1 |
| 负载 (kW): 18.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 58.1 |
| 负载 (kW): 18.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 57.1 |
| 负载 (kW): 19 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 56.2 |
| 负载 (kW): 19.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 55.3 |
| 负载 (kW): 19.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 54.4 |
| 负载 (kW): 19.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 53.6 |
| 负载 (kW): 20 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 52.7 |
| 负载 (kW): 20.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 51.9 |
| 负载 (kW): 20.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 51.1 |
| 负载 (kW): 20.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 50.4 |
| 负载 (kW): 21 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 49.6 |
| 负载 (kW): 21.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 48.9 |
| 负载 (kW): 21.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 48.2 |
| 负载 (kW): 21.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 47.5 |
| 负载 (kW): 22 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 46.8 |
| 负载 (kW): 22.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 46.1 |
| 负载 (kW): 22.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 45.5 |
| 负载 (kW): 22.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 44.9 |
| 负载 (kW): 23 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 44.2 |
| 负载 (kW): 23.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 43.6 |
| 负载 (kW): 23.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 43.0 |
| 负载 (kW): 23.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 42.5 |
| 负载 (kW): 24 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 41.9 |
| 负载 (kW): 24.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 41.4 |
| 负载 (kW): 24.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 40.8 |
| 负载 (kW): 24.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 40.3 |
| 负载 (kW): 25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 39.8 |
| 负载 (kW): 25.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 39.3 |
| 负载 (kW): 25.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 38.8 |
| 负载 (kW): 25.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 38.3 |
| 负载 (kW): 26 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 37.8 |
| 负载 (kW): 26.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 37.3 |
| 负载 (kW): 26.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 36.9 |
| 负载 (kW): 26.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 36.4 |
| 负载 (kW): 27 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 36.0 |
| 负载 (kW): 27.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 35.6 |
| 负载 (kW): 27.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 35.2 |
| 负载 (kW): 27.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 34.7 |
| 负载 (kW): 28 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 34.3 |
| 负载 (kW): 28.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 33.9 |
| 负载 (kW): 28.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 33.5 |
| 负载 (kW): 28.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 33.2 |
| 负载 (kW): 29 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 32.8 |
| 负载 (kW): 29.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 32.4 |
| 负载 (kW): 29.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 32.0 |
| 负载 (kW): 29.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 31.7 |
| 负载 (kW): 30 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 31.3 |
| 负载 (kW): 30.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 31.0 |
| 负载 (kW): 30.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 30.6 |
| 负载 (kW): 30.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 30.3 |
| 负载 (kW): 31 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 30.0 |
| 负载 (kW): 31.25 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 29.7 |
| 负载 (kW): 31.5 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 29.4 |
| 负载 (kW): 31.75 |
| SUVTR40KH5B5S + (1) SUVTXR6B6S |
| 运行期（最小值）: 29.0 |
| 负载 (kW): 32 |
| A |
| 运行期（最小值）: 9.1 |
| 负载 (kW): 31.36 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 175.8 |
| 负载 (kW): 3.2 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 172.9 |
| 负载 (kW): 3.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 159.5 |
| 负载 (kW): 3.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 147.9 |
| 负载 (kW): 3.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 137.6 |
| 负载 (kW): 4 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 128.6 |
| 负载 (kW): 4.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 120.6 |
| 负载 (kW): 4.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 113.5 |
| 负载 (kW): 4.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 107.0 |
| 负载 (kW): 5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 101.2 |
| 负载 (kW): 5.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 95.9 |
| 负载 (kW): 5.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 91.1 |
| 负载 (kW): 5.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 86.7 |
| 负载 (kW): 6 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 82.6 |
| 负载 (kW): 6.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 78.9 |
| 负载 (kW): 6.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 75.5 |
| 负载 (kW): 6.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 72.3 |
| 负载 (kW): 7 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 69.3 |
| 负载 (kW): 7.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 66.6 |
| 负载 (kW): 7.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 64.0 |
| 负载 (kW): 7.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 61.6 |
| 负载 (kW): 8 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 59.3 |
| 负载 (kW): 8.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 57.2 |
| 负载 (kW): 8.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 55.2 |
| 负载 (kW): 8.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 53.3 |
| 负载 (kW): 9 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 51.6 |
| 负载 (kW): 9.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 49.9 |
| 负载 (kW): 9.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 48.3 |
| 负载 (kW): 9.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 46.8 |
| 负载 (kW): 10 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 45.4 |
| 负载 (kW): 10.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 44.0 |
| 负载 (kW): 10.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 42.7 |
| 负载 (kW): 10.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 41.5 |
| 负载 (kW): 11 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 40.3 |
| 负载 (kW): 11.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 39.2 |
| 负载 (kW): 11.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 38.1 |
| 负载 (kW): 11.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 37.1 |
| 负载 (kW): 12 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 36.2 |
| 负载 (kW): 12.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 35.2 |
| 负载 (kW): 12.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 34.3 |
| 负载 (kW): 12.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 33.4 |
| 负载 (kW): 13 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 32.6 |
| 负载 (kW): 13.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 31.8 |
| 负载 (kW): 13.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 31.1 |
| 负载 (kW): 13.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 30.3 |
| 负载 (kW): 14 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 29.6 |
| 负载 (kW): 14.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 29.0 |
| 负载 (kW): 14.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 28.3 |
| 负载 (kW): 14.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 27.7 |
| 负载 (kW): 15 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 27.0 |
| 负载 (kW): 15.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 26.4 |
| 负载 (kW): 15.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 25.9 |
| 负载 (kW): 15.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 25.3 |
| 负载 (kW): 16 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 24.8 |
| 负载 (kW): 16.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 24.3 |
| 负载 (kW): 16.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 23.8 |
| 负载 (kW): 16.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 23.3 |
| 负载 (kW): 17 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 22.8 |
| 负载 (kW): 17.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 22.4 |
| 负载 (kW): 17.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 21.9 |
| 负载 (kW): 17.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 21.5 |
| 负载 (kW): 18 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 21.1 |
| 负载 (kW): 18.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 20.7 |
| 负载 (kW): 18.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 20.3 |
| 负载 (kW): 18.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 19.9 |
| 负载 (kW): 19 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 19.5 |
| 负载 (kW): 19.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 19.2 |
| 负载 (kW): 19.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 18.8 |
| 负载 (kW): 19.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 18.5 |
| 负载 (kW): 20 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 18.1 |
| 负载 (kW): 20.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 17.8 |
| 负载 (kW): 20.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 17.5 |
| 负载 (kW): 20.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 17.2 |
| 负载 (kW): 21 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 16.9 |
| 负载 (kW): 21.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 16.6 |
| 负载 (kW): 21.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 16.3 |
| 负载 (kW): 21.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 16.0 |
| 负载 (kW): 22 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 15.8 |
| 负载 (kW): 22.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 15.5 |
| 负载 (kW): 22.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 15.2 |
| 负载 (kW): 22.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 15.0 |
| 负载 (kW): 23 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 14.7 |
| 负载 (kW): 23.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 14.5 |
| 负载 (kW): 23.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 14.2 |
| 负载 (kW): 23.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 14.0 |
| 负载 (kW): 24 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 13.8 |
| 负载 (kW): 24.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 13.6 |
| 负载 (kW): 24.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 13.4 |
| 负载 (kW): 24.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 13.2 |
| 负载 (kW): 25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.9 |
| 负载 (kW): 25.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.7 |
| 负载 (kW): 25.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.5 |
| 负载 (kW): 25.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.3 |
| 负载 (kW): 26 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.2 |
| 负载 (kW): 26.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 12.0 |
| 负载 (kW): 26.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 11.8 |
| 负载 (kW): 26.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 11.6 |
| 负载 (kW): 27 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 11.4 |
| 负载 (kW): 27.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 11.2 |
| 负载 (kW): 27.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 11.1 |
| 负载 (kW): 27.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.9 |
| 负载 (kW): 28 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.8 |
| 负载 (kW): 28.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.6 |
| 负载 (kW): 28.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.4 |
| 负载 (kW): 28.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.3 |
| 负载 (kW): 29 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.1 |
| 负载 (kW): 29.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 10.0 |
| 负载 (kW): 29.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.8 |
| 负载 (kW): 29.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.7 |
| 负载 (kW): 30 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.6 |
| 负载 (kW): 30.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.4 |
| 负载 (kW): 30.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.3 |
| 负载 (kW): 30.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.2 |
| 负载 (kW): 31 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 9.0 |
| 负载 (kW): 31.25 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 8.9 |
| 负载 (kW): 31.5 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 8.8 |
| 负载 (kW): 31.75 |
| SUVTR40KH5B5S |
| 运行期（最小值）: 8.6 |
| 负载 (kW): 32 |
浏览上面的运行时图表线来查看的运行时与负载比详情
估计的运行时间是在典型的环境条件下且没有电力输入并采用 PF =
0.8 的均衡输出情况下，基于电池供应商的数据得出的。
通讯与管理
接口端口
DB-9 RS-232, SmartSlot 插槽
预装 SmartSlot™ 卡
控制面板
多功能液晶显示器状态管理控制台。
有声报警
声音和视觉报警：可配置延迟
紧急关断
是
物理指标
高
1995.00 mm
宽
600.00 mm
深
1075.00 mm
净重
749.00 KG
运输重量
873.18 KG
运输高度
2095.00 mm
运输宽度
756.00 mm
运输长度
1206.00 mm
颜色
黑色
环境
工作环境
0 - 40 °C
工作相对湿度
0 - 95%
操作高度
0-999.9米
存储温度
-50 - 40 °C
存储相对湿度
0 - 95%
存储高度
0-15000米
听觉噪音距设备表面 1 m 处
67.00 dBA
在线运行发散热量
5459.00 BTU/hr
保护等级
IP 20
相符性
管理机构认证
C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC
61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111
标准质保
1 年维修或更换服务, 启动服务
可持续提供状态
RoHS
符合
REACH
REACH SVHC
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
电池指令
符合
电池注意事项
其它的环境合规性
中国RoHS
**UPS带50%额定容量负载放电至关机后，重新充电到90%电池容量所需时间
。
SUVTR40KH5B5S
品牌APC
分类APC三相UPS
QQ客服
